IBASSO PB6 MACAW SILVER

iBasso’s PB6 is simply a sublime addition to any DAP you might have. Opening up the space, and injecting a sliver of warmth into it, really transforms your playback – allowing you to drift and immerse into your favourites.

What’s under the hood?
– Four military-grade JAN6418 tubes by Raytheon implemented in a 4-channel fully balanced amplification architecture imparts a rich, warm tube character for a natural listening experience
– Four BUF634A OP+BUF headphone amplifier circuit offers enhanced resolution and excellent dynamic range with the Class AB output mode
– 8.4V high-voltage battery pack improves power efficiency and transient response capabilities by minimizing ripple interference, resulting in a purer and more stable power supply enabling faithful reproduction of musical nuances and dynamic range
– External 12V DC power supply support allows for a greater power output or 2300mW per channel at 32 Ohms, and an increased voltage swing of 24V, enabling the PB6 to effortlessly power full-size headphones and achieving performance comparable to quality desktop-grade headphone amplifiers
– Choose between excellent transient response with superior control and resolution or a softer, warmer soundstage with a selectable high & low bandwidth output stage

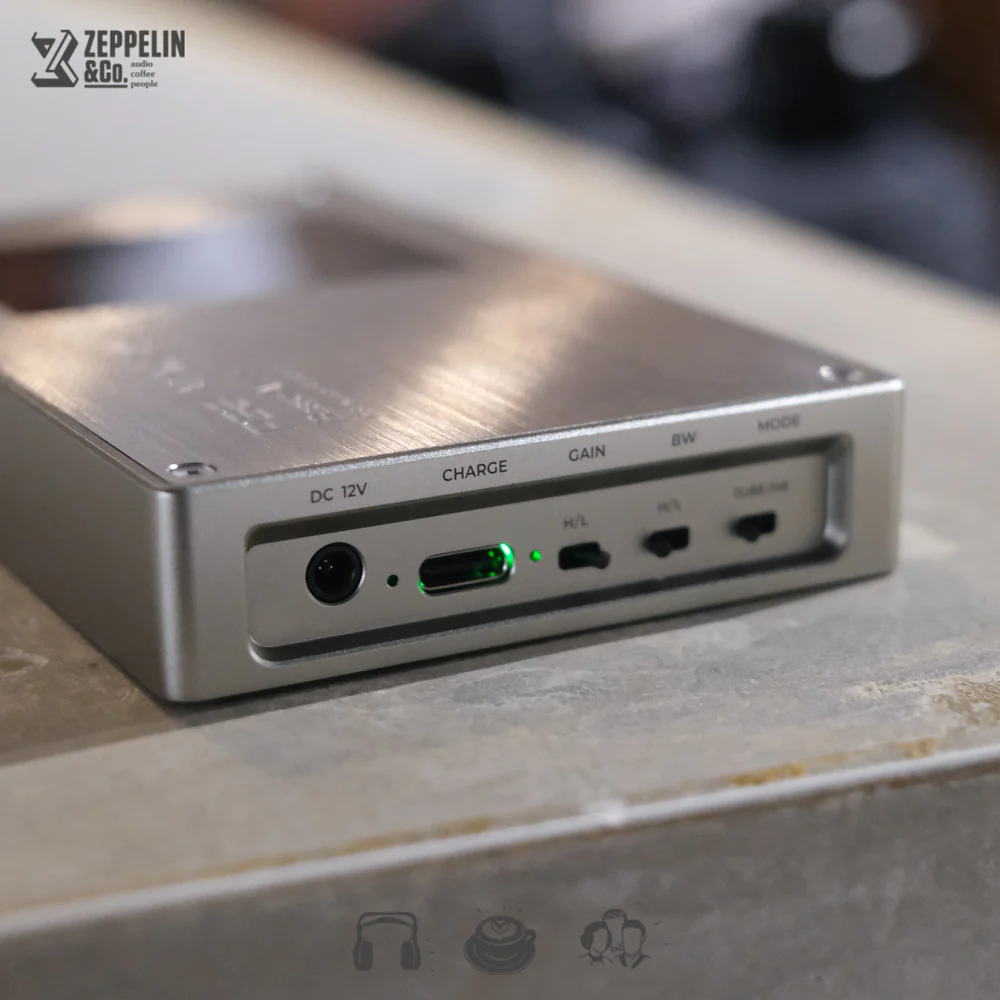

– Supports both 3.5mm single-ended and 4.4mm balanced input and output

// SPECIFICATIONS
– Maximum Output Power (Battery): 1600mW @ 32 Ohms (4.4mm BAL), 660mW @ 32 Ohms (3.5mm SE)
– Maximum Output Power (DC 12V): 2300mW @ 32 Ohms (4.4mm BAL). 660mW @ 32 Ohms (3.5mm SE)
– Output Impedance: 1.2 Ohms (4.4mm BAL), 0.5 Ohms (3.5mm SE)
– Battery Life: Up to 13.5 hours (Class AB / BAL output / high gain / low bandwidth)
– Size: 140.7 x 78.9 x 19.6 mm
– Weight: ~293g

// IN THE BOX
– PB6 amp
– USB Type-A to USB Type-C charging cable
– DC 12V power supply
– 4.4mm – 4.4mm BAL interconnect
– 3.5mm – 3.5mm SE interconnect
– Carrying pouches
– Documentation
