Matrix Audio TS-1

A versatile all-in-one-box solution with footprint slightly smaller than a sheet of A4 sized paper (28x21x8.2cm), this integrated DAC+AMP+Streamer is a new generation design from Matrix that’s powered by the streaming capabilities of the flagship M-series.

It bridges possibilities and enables connectivity to active speakers of varying gain requirements and TV for home entertainment via HDMI Arc with high-standard XLRs and RCA analog output interface.

The design is fully balanced with a high-bias discrete headphone amplifier offering two-level output voltage settings effortlessly handles both low-impedance IEMs and high-impedance full-sized headphones.Analog and digital circuits are on separate PCB layers, minimizing interference between circuits and facilitates efficient heat dissipation.

• Supports: TIDAL, Qobuz, HIGHRESAUDIO and internet radio
• Support streaming protocols including Roon Ready, Audirvana, TIDAL Connect, Spotify Connect, AirPlay2, QPlay and UPnP/DLNA

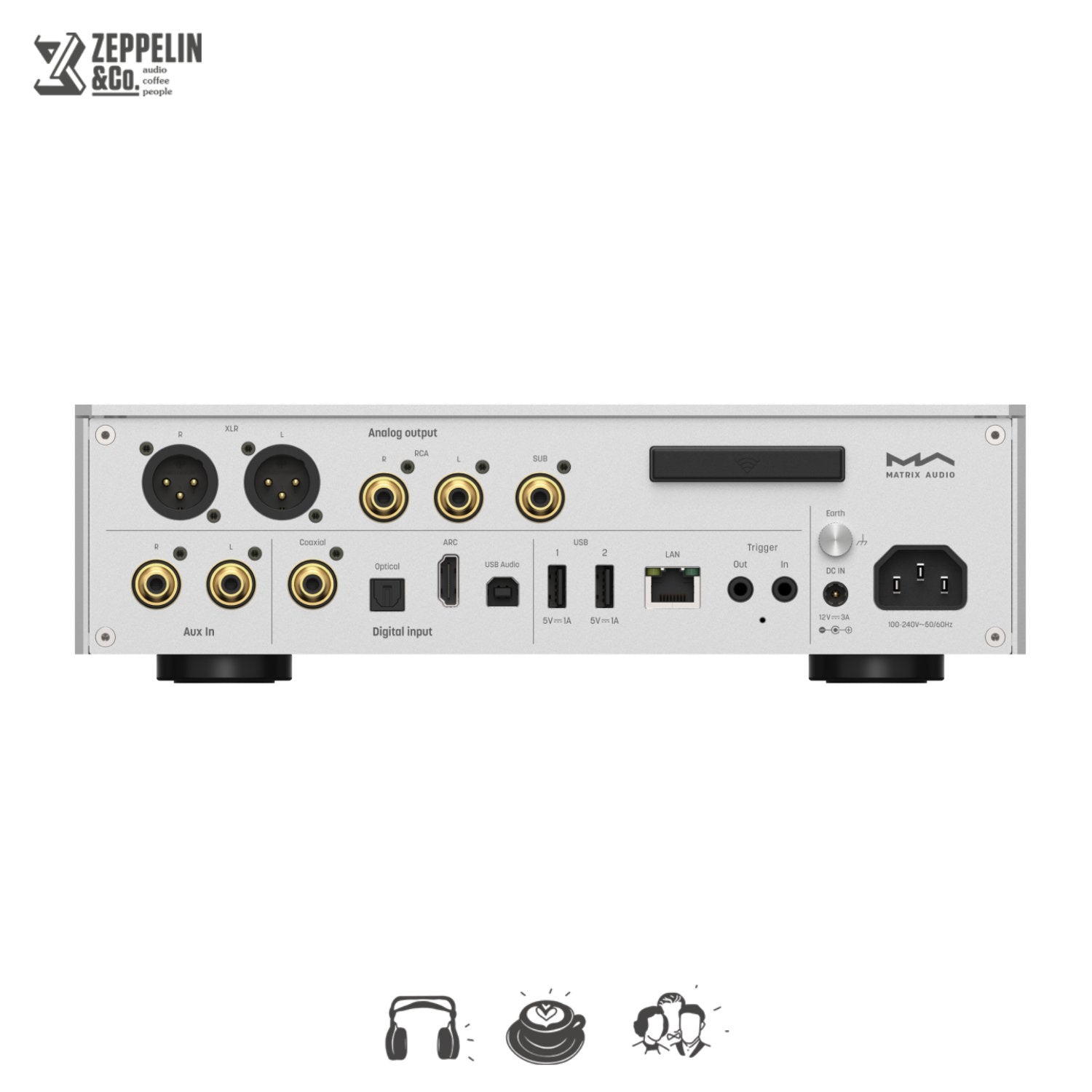

• Inputs: Optical, coaxial, USB Audio, HDMI ARC and RCA
• Subwoofer output specifically for audio frequencies below 150Hz

// SPECIFICATION

– DAC: 2x AKM4493SEQ
– Digital Input: Coaxial, Optical, HDMI ARC, USB Audio
– Headphone Output SNR: 119dB (4.4mm), 116dB (1/4″)
– Headphone Output Power @ 33 Ohms: 1000mW (4.4mm), 1400mW (1/4″)
– Headphone Output Power @ 300 Ohms: 1000mW (4.4mm), 250mW (1/4″)
– Headphone Output Power @ 600 Ohms: 500mW (4.4mm), 130mW (1/4″)
– Network Connections: LAN (10/100/1000 Mbps), WiFi (2.4Ghz / 5Ghz)
– Storage Extensions: M.2 2280 2260 2242 NVMe PCIe SSD slot (Supports PCIe 3.0/4.0/5.0)

// IN THE BOX
– TS-1 Unit
– Power cable (Type G for UK/SG)
– IR Remote
– Documentation
